Semi Automatic Reheat

Semi-Automatic Hand Fed Pre-Form Heater and Reheat Blow Machines

Pet Equipment – Index
2 – Stage Equipment (from Pre-Forms)

Semi-Automatics (2 machines per system)
1.	5 Gallon Model 27 Pet-All	(1 US Gallon semi-automatic)
2.	10 Liter Model 10 Pet-All PLC	(10L one cavity, 2L two cavity semi-automatic)
3.	7 Liter Model 7 Pet-All PLC	(7L one cavity, 2L two cavity semi-automatic)
4.	3 Liter Model 3 Pet-All PLC	(3L one cavity, 2L two cavity semi-automatic)
5.	Pet-All WM Preheater	(For Wide Mouth Containers)

Pet All Manufacturing Inc. Pet Program
Pet Reheat Stretch Biaxial Machinery: 2 Stage From Pre-Forms

Semi-Automatic Equipment (4 sizes available)

Features:
Pet All`s semi-automatic PET blow molders have exceptional features, as follows:

Full safety protection shield (retracting) on blow molder
Mold adjustment device be separate motor
FESTO pneumatics, Omron PLC and controls, automatic lubrication system

Several models are available. In all cases 2 machines are necessary. One to heat the pre-form and one to blow the PET pre-form into a finished container. Full support equipment available for a complete plant.

1. 5 Gallon Model 27 Pet-All (1 US Gallon to 5+ US Gallon)

Volume in liters of product 1 US Gallon up to 27 Litres (3.8 to 27L)
Output To 100 per hour
Neck of product To 100 mm (Max)
Mold platen 420x640 mm
Mold Thickness 400 mm
Mold stroke 330 mm
Clamp force 100KN
Operator Protection shield (retracting) on blow molder

Blow Molder: 2.75 x 0.68 x 2.1 meters (size). Weight 2100 kgs.

Pre-heater: 2.2 x 0.75 x 1.9 meters (size). Weight 560 kgs.

On request, will be supplied with all ancillary equipment:

High Pressure Air Compressor: Size 1.9 x 0.76 x 1.5 meters. Weight 80 kgs.
Low Pressure Air Compressor: Size 1.9 x 0.75 x 1.4 meters. Weight 13 kgs.
Front and Rear Air Filter: Size 0.5 x 0.3 x 0.7 meters. Weight 20 kgs.
Voltage Regulator: Size 0.8 x 0.7 x 1.4 meters. Weight 350 kgs.

2. 10 Liter Model 10 Pet-All PLC (10 Liter in 1 cavity)

PLC controlled equipment
Volume of product size To 10 Liter
Output To 350 per hour
Neck of Product To 75 mm (max)
Mold platen 360 x 500 mm
Mold thickness 300 mm (max) 170 mm (min)
Mold stroke 230 mm
Clamp force 80 KN
Operator Protection shield (retracting) on blow molder.

Blow Molder: 1.6 x 0.58 x 1.8 meters (size). Weight 800 kgs.

Pre-heater: 1.5 x 0.7 x 1.35 meters (size). Weight 380 kgs.

Ancillary Equipment
Full set available: High / Low Compressors (2), Air Filter (1), Voltage Regulator (1)

3. 7 Liter Model 7 Pet-All PLC (7 Liter in 1 cavity, 2 Liter in 2 cavity)

PLC controlled equipment
Volume of product size To 7 Liter (1 cavity) 2 Liter (2 cavity)
Output 350 per hour 7L, 840 per hour 2L (max)
Neck of product To 75 mm
Mold thickness 280 mm (max) 170 mm (min)
Mold Stroke 210 mm
Clamp force 80 KN
Operator Protection Shield (retracting) on blow molder.

Blow Molder: 1.83 x 0.58 x 1.8 meters (size). Weight 800 kgs.

Pre-heater: 1.5 x 0.7 x 1.4 meters (size). Weight 380 kgs.

Ancillary Equipment
Full set available: High/Low Compressors (2), Air Filter (1), Voltage Regulator (1)

4. 3 Liter Model 3 Pet-All PLC (3 Liter in 1 cavity, 2 Liter in 2 cavity)

PLC controlled equipment
Volume of product size 3 Liter in 1 cavity, 2 Liter in 2 cavity
Output 350 per hour 3L, 840 per hour 2L
Neck of product To 75 mm
Mold platen 360 x 500 mm
Mold Thickness 200 mm (max) 120 mm (min)
Mold stroke 140 mm
Clamp force 60 KN
Operator Protection Shield (retracting) on blow molder

Blow Molder: 1.53 x 0.58 x 1.75 meters (size). Weight 690 kgs.

Pre-heater: 1.35 x 0.5 x 1.2 meters (size). Weight 280 kgs

Ancillary Equipment
Full set available: High/Low Compressors (2), Air Filter (1), Voltage Regulator (1)

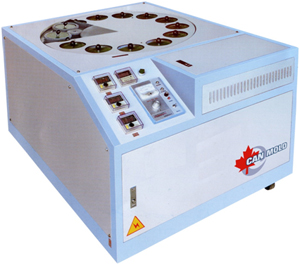

5. Pet-All Wide Mouth Preheater

Special for Wide Necks (Wide Mouth Containers)
A special preheater is available for wide mouth containers, with 12 rotation device widely spaced.
